Connectors BNC connectors, which are small metal pieces that assist in connecting cables to devices. BNC connectors come in several varieties and can vary by size and shape. Continue reading to explore the various BNC types and how to select the best option for your needs.
BNC connectors come in various forms, designed for ease of installation with specific types of coax and for different applications. Some popular BNC connector types include straight BNC connector, right-angle BNC connectors, and bulkhead BNC connector. Straight BNC:A straight type of BNC that connects the cables directly in line. BNC connectors with a 90° angle are for use in tight places when you need a cable to plug in straight. Bulkhead BNC connectors are used to mate with cables interconnecting through a panel or wall.
BNC connections can also vary in construction, much like male and female connections. Male BNC connectors have a pin that slides into the female or jack connector whereas female BNC connectors have a hole in the center for the pin. We also have BNC connectors with different impedance ratings as well (which is how well it can send a signal).
If you're choosing a BNC connector, consider the type of cable you'll be using and the equipment to which it will be connected. You may also want to pay attention to the connector’s impedance rating and decide whether you need a straight or right-angle connector. Selecting a quality BNC connector can literally make or break a quality connection.

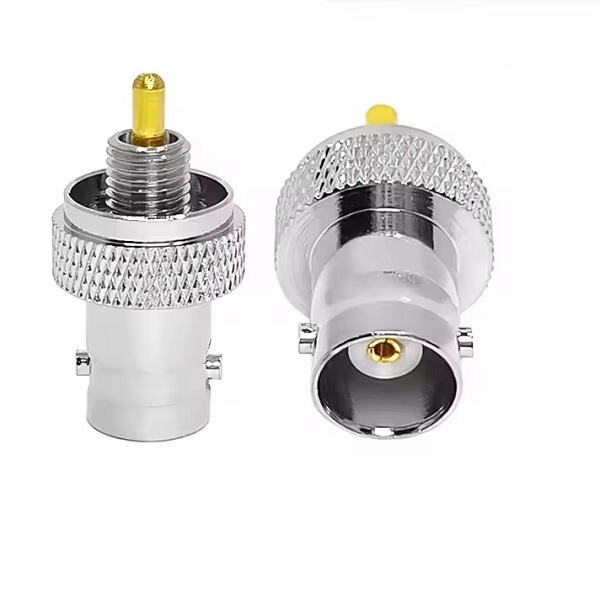

BNC terminators and BNC adapters are a couple of the most populat types of BNC connectors. BNC T connectors enable you to attach multiple devices to a single cable. BNC terminators are utilized to close off a line that is not being used in order to prevent the signal loss. BNC adapters enable you to get BNC cables attached to things that do not have BNC connectors.
How to Select the Right BNC Connector The right BNC connectors for you depend on what you need them for and what sorts of equipment you are connecting. If you have to attach multiple items to one cable, you would probably want to go for a BNC T-connector. Again, if you have residual connectors, it'll help with signal integrity. A BNC adapter can help if you need to connect BNC cables to devices with different types of connectors.
