Introduction to LMR 400 Coaxial Cables

Jun 30, 2025

LMR 400 coaxial cables are specifically designed as high-frequency radio frequency (RF) signal transmission lines for wireless communication systems and other antenna applications.

Overview of LMR 400 Coaxial Cables

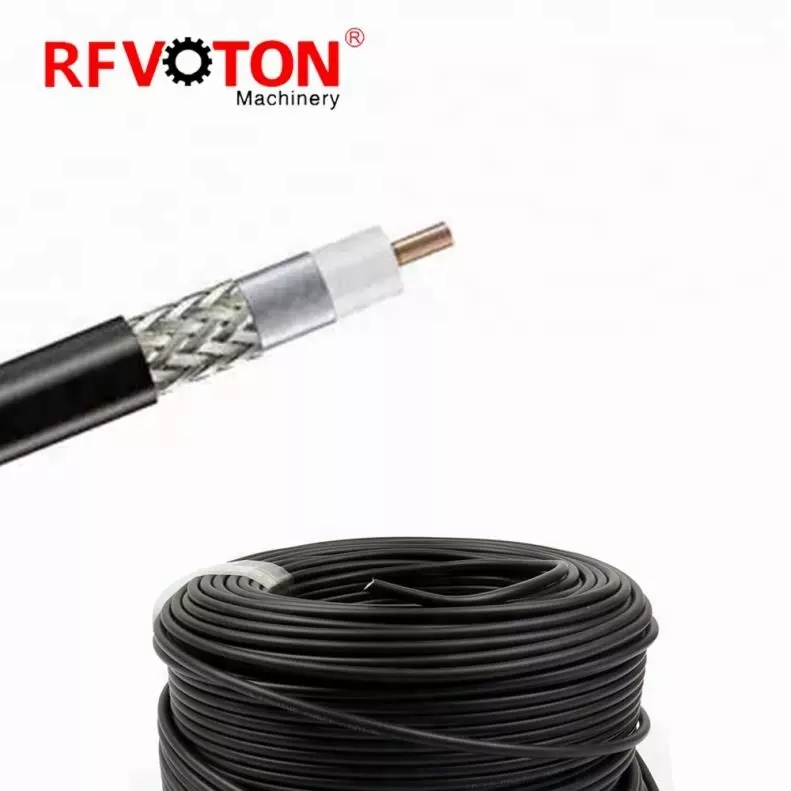

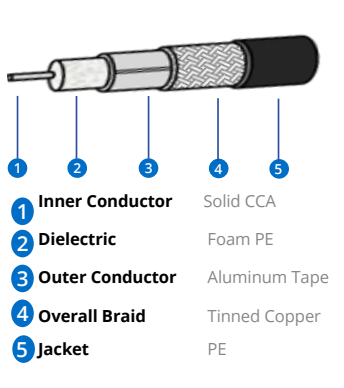

LMR 400 is a 50-ohm low-loss flexible coaxial cable with an overall diameter of 0.405 inches and a rated voltage of up to 2500 VDC. It features a solid copper-clad aluminum conductor as the core for signal transmission, enclosed by a layer of foam polyethylene (Foam PE) insulation. This insulation layer is then completely wrapped by two shielding layers: the first layer is made of aluminum tape, and the outer layer is a braided shielding of tinned copper. These two shielding layers not only constitute the outer conductor but also provide excellent electromagnetic interference (EMI) protection. The outermost layer of the cable is a polyethylene (PE) jacket, which effectively protects the cable core from mechanical damage, moisture, chemicals, and environmental factors.


Key Performance Parameters

‌Overall Diameter‌: 0.405 inches
‌Characteristic Impedance‌: 50 ohms
‌Rated Voltage‌: 2500 VDC
‌Cable Capacitance‌: Approximately 23.9 pF/foot (78.4 pF/meter)
‌Inductance‌: 0.060 µH/foot
‌Attenuation‌: Approximately 3.9 dB/100 feet at 900 MHz (cable attenuation varies with frequency)
‌Insulation Material‌: Foam Polyethylene (Foam PE)
‌Minimum Bend Radius (for Installation)‌: 1.0 inch

LMR 400 cables exhibit a propagation velocity of approximately 84%, with a center conductor diameter of 0.108 inches (2.74 mm) and an insulation layer diameter of 0.285 inches (7.24 mm). Its unique double-shielding structure provides RF shielding effectiveness of over 90 dB.


Application Advantages and Scenarios

LMR 400 coaxial cables, with their high performance, flexibility, and low loss characteristics, are ideal for numerous applications. Compared to RG8/RG213-type cables, LMR 400 has the lowest loss. It can serve as a replacement for RG-8 cables and overlaps with RG213 cables in some characteristics. LMR 400 cables can be used both indoors and outdoors, especially suitable for the following scenarios:

Direct replacement for RG-8/9913 air-dielectric type cables
Jumper assemblies in wireless communication systems
Short antenna feeder runs
Any application requiring easily routed, low-loss RF cables (such as wireless local loop (WLL), GPS, etc.)
