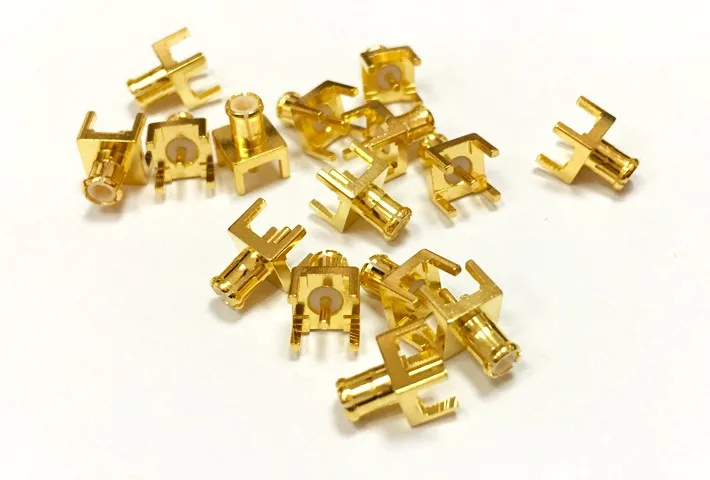

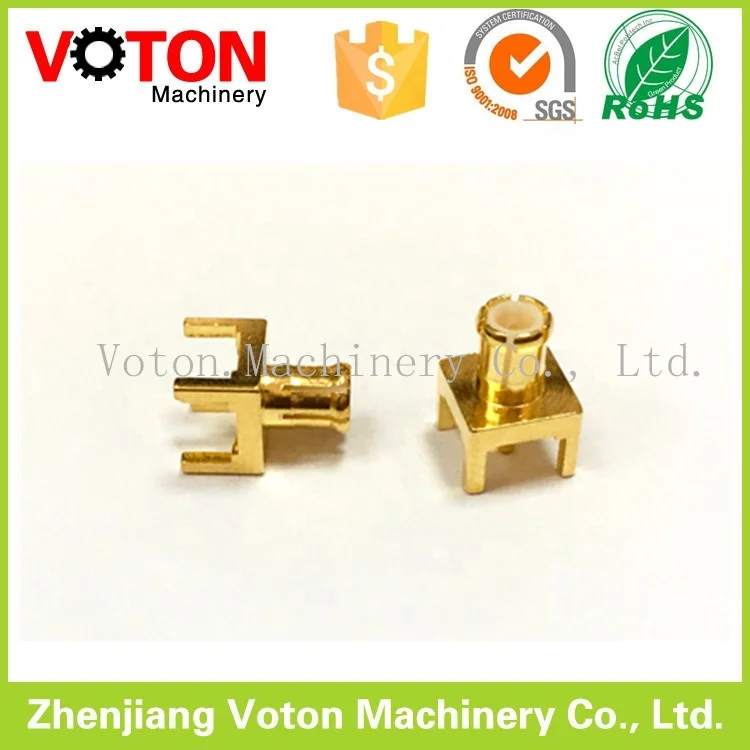

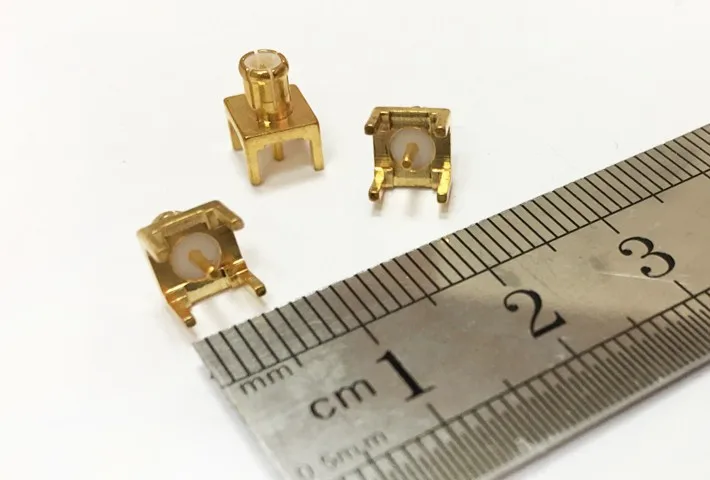

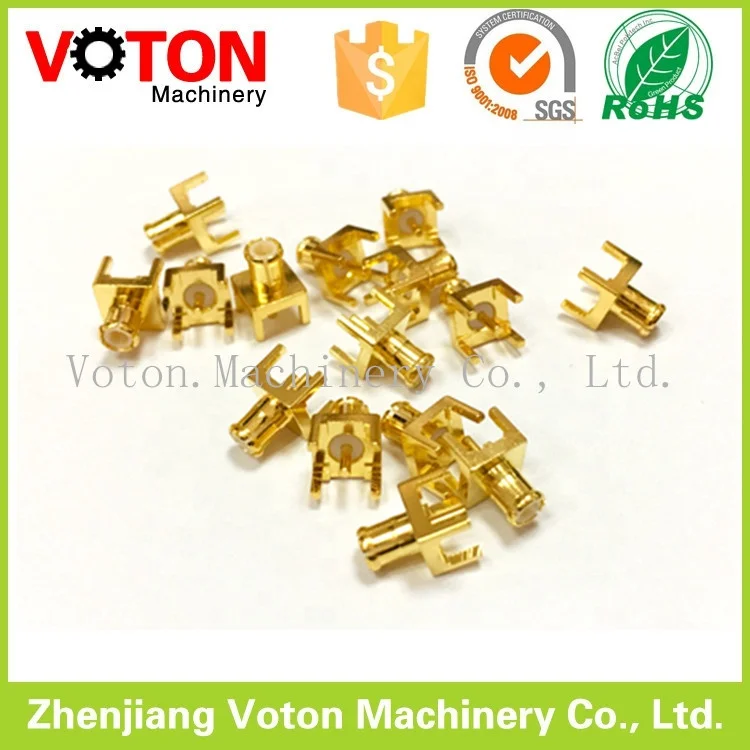

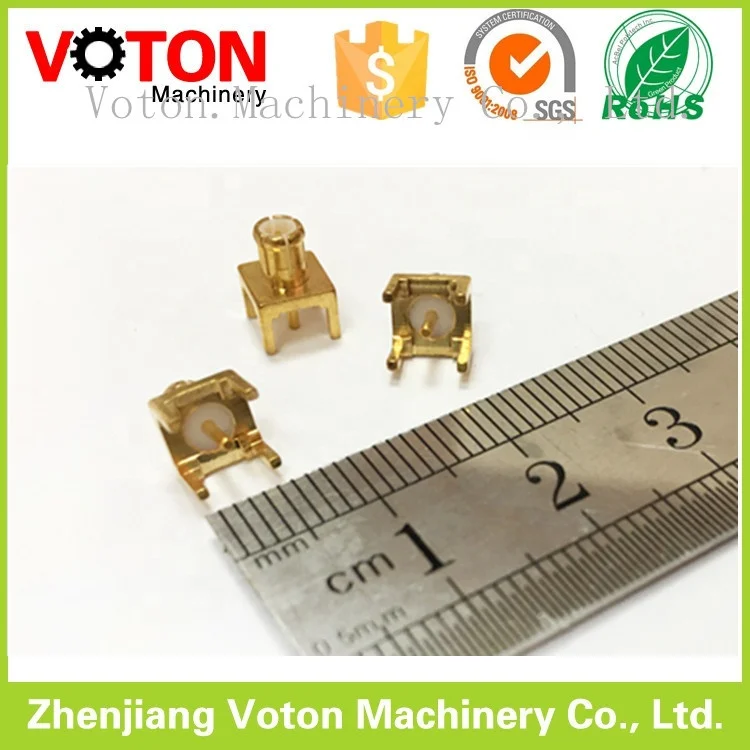

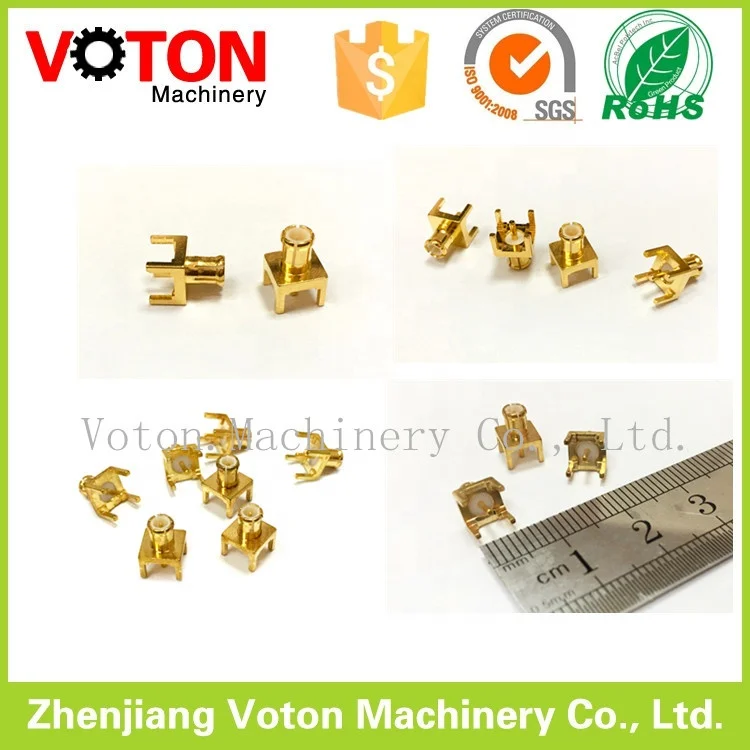

RF Coaxial connector MMCX MCX male/female/PCB connector
|
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
|
|
Impedance |
50Ω, 75Ω |
|
|
Vibration |
98m/S2 (10~2000Hz), 10g |
|
|
Frequency Range |
DC-6GHz |
|
|
Insertion Loss |
0.18dB/1GHz |
|
|
Withstanding Voltage |
750V(50Ω) 250V(75Ω) at sea level |
|
|
Working Voltage |
250V(50Ω) 170V(75Ω) at sea level |
|
|
Insulation Resistance |
≥ 1000 MΩ |
|
|
Engagement force |
≤20N |
|
|
Disengagement force |
≥ 8N |
|
|
Durability |
≥ 500(cycles) |
|
|
Contact resistance: |
CenterContact ≤ 5mΩ |
|
|
Outer Contact ≤ 2.5mΩ |
||
|
Voltage Standing Wave Ratio: |
Straight |
≤ 1.20/1GHz |
|
Right angle |
≤ 1.45/1GHz |
|
RF Connectors ( SMA , N , TNC, BNC, DIN) Various type PCB type, Cable Type, Clamp Type
Jumpers Cable. DIN-DIN Jumpers Cable , DIN – N Jumpers Cable,
Cable assembly, Customize Cable assembly, CNT Cable Assembly, SMA-SMA Cable assembly, Antenna cable assembly
Cables, WTR 200, WTR 400, WTR 600, RG 141 , RG 316, RG179, RG 58, RG 59, all other Various type of Cables
Antenna, Yagi Antenna, Patch Penal Antenna, Omni antenna, Sector Antenna, Vast Dish antenna
Splitter, Coupler, Termination, Attenuators, Antenna
Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.
VOTON is a professional and experienced RF connector products manufacturer for 10years. Just show me your drawing ,sample or indicated details, we will produce it for you effectively.
Or pls kindly send us your specific engineering parameters such as IMD,V.S.W.R,plating,etc.And we will discuss with you about the details.
|
Q:what's your company MOQ? |
|
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate. |
|
Q: What's your delivery time? |
|
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production. |
|
Q: Can your company accept customize? |
| A: Welcome OEM & ODM. |
|
Q: How do you solve after sale service? |
|
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you. |
|
Q: Can you send a sample for us to develop? |
| A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order. |
