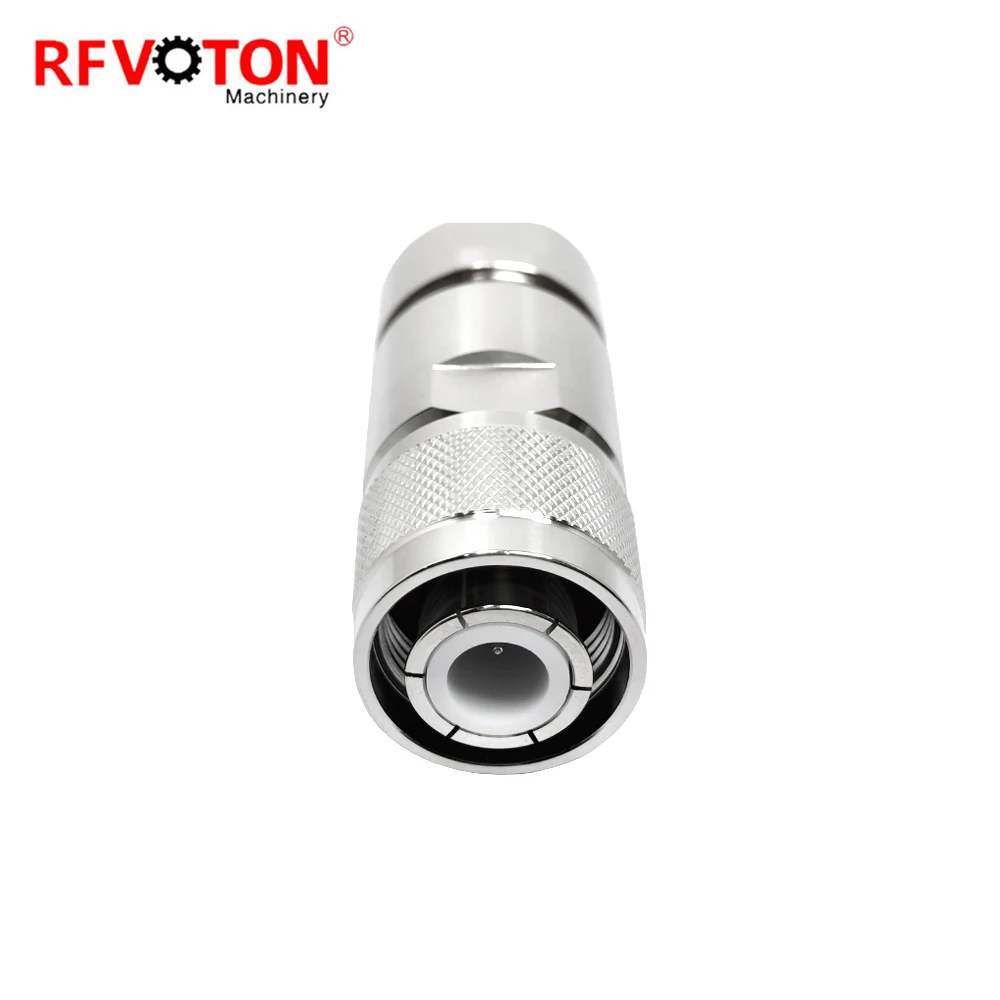

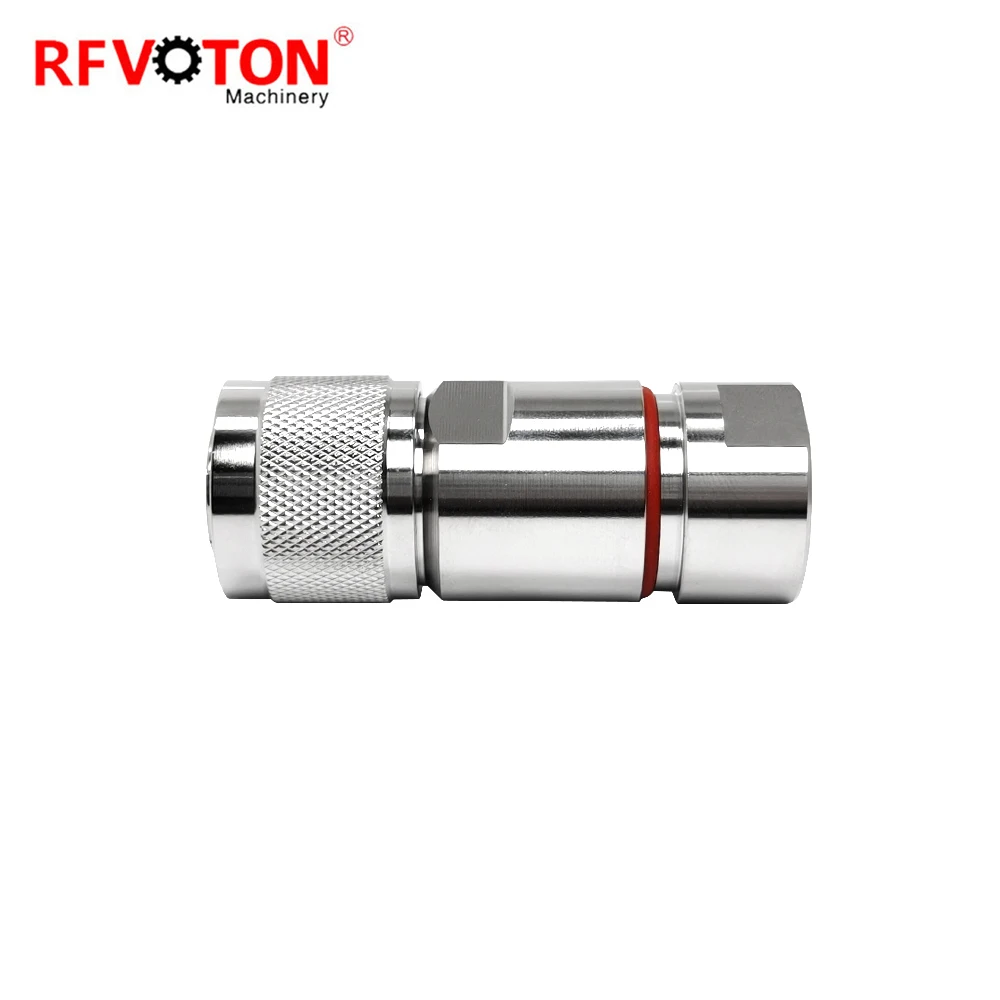

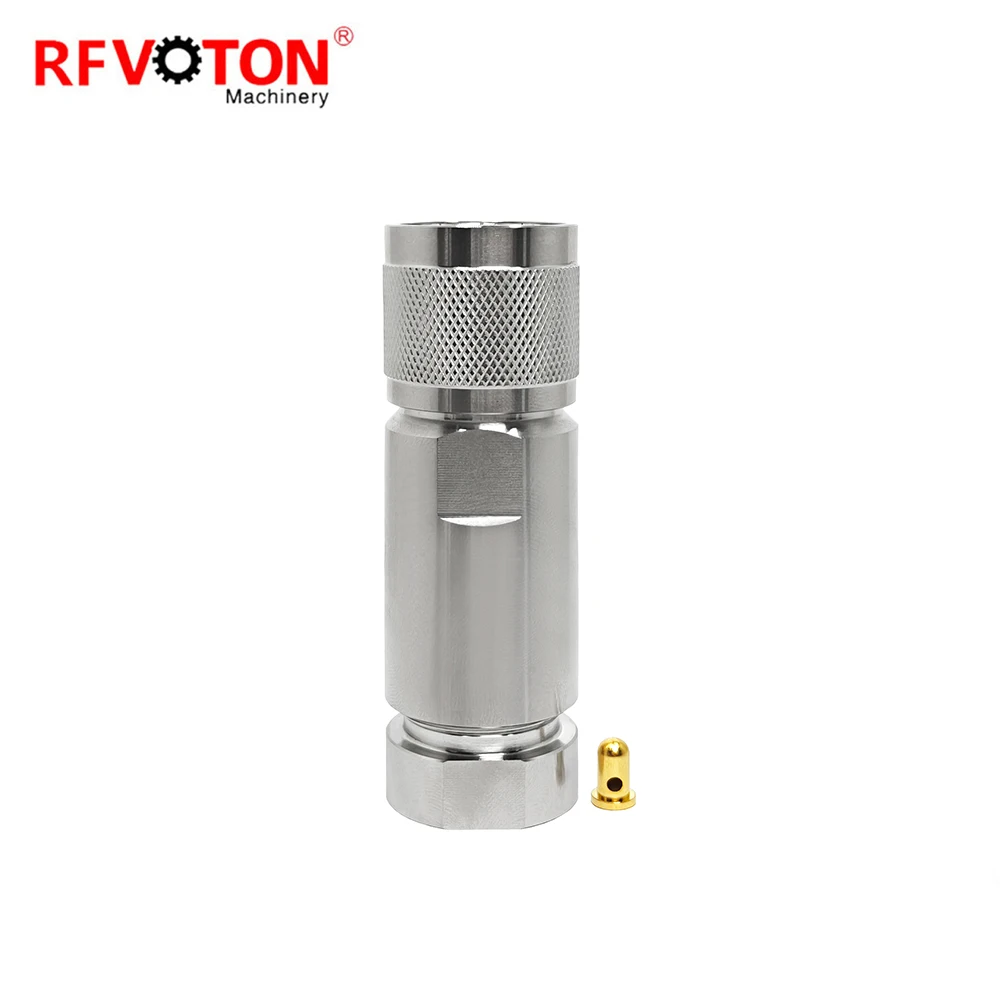

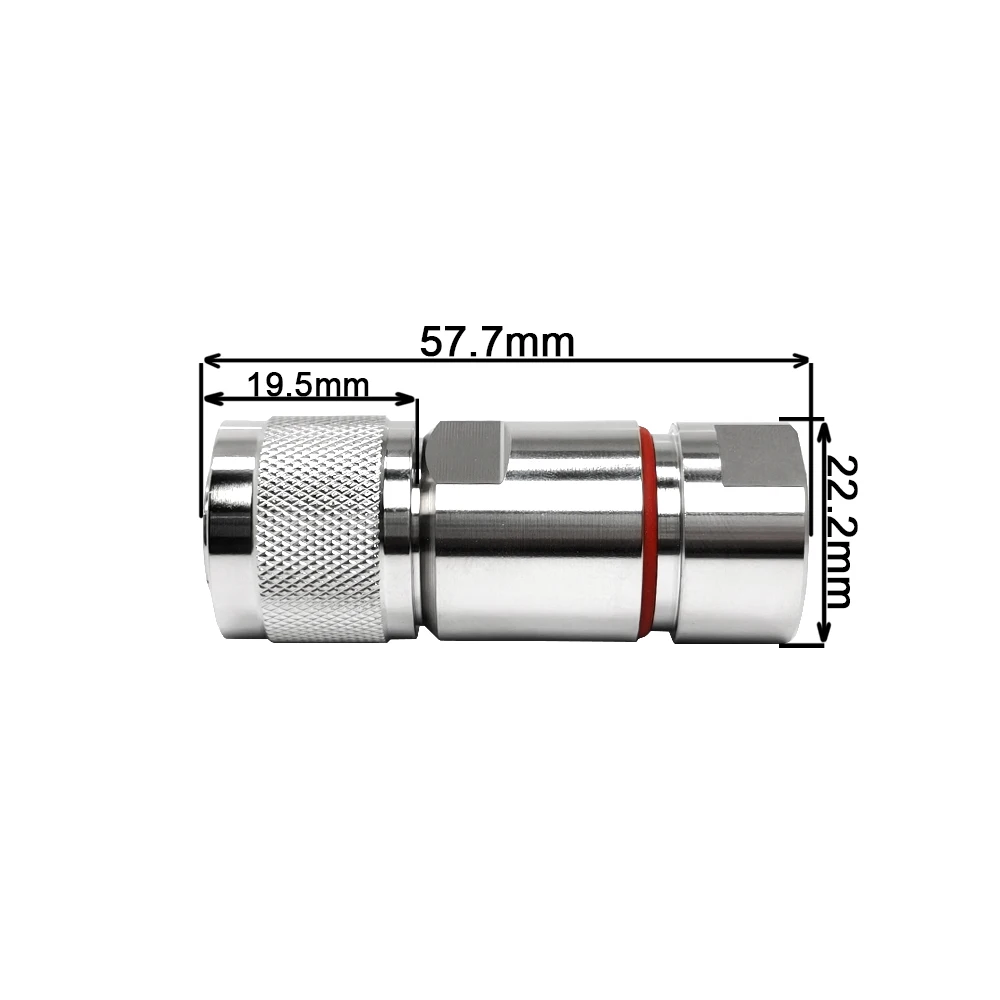

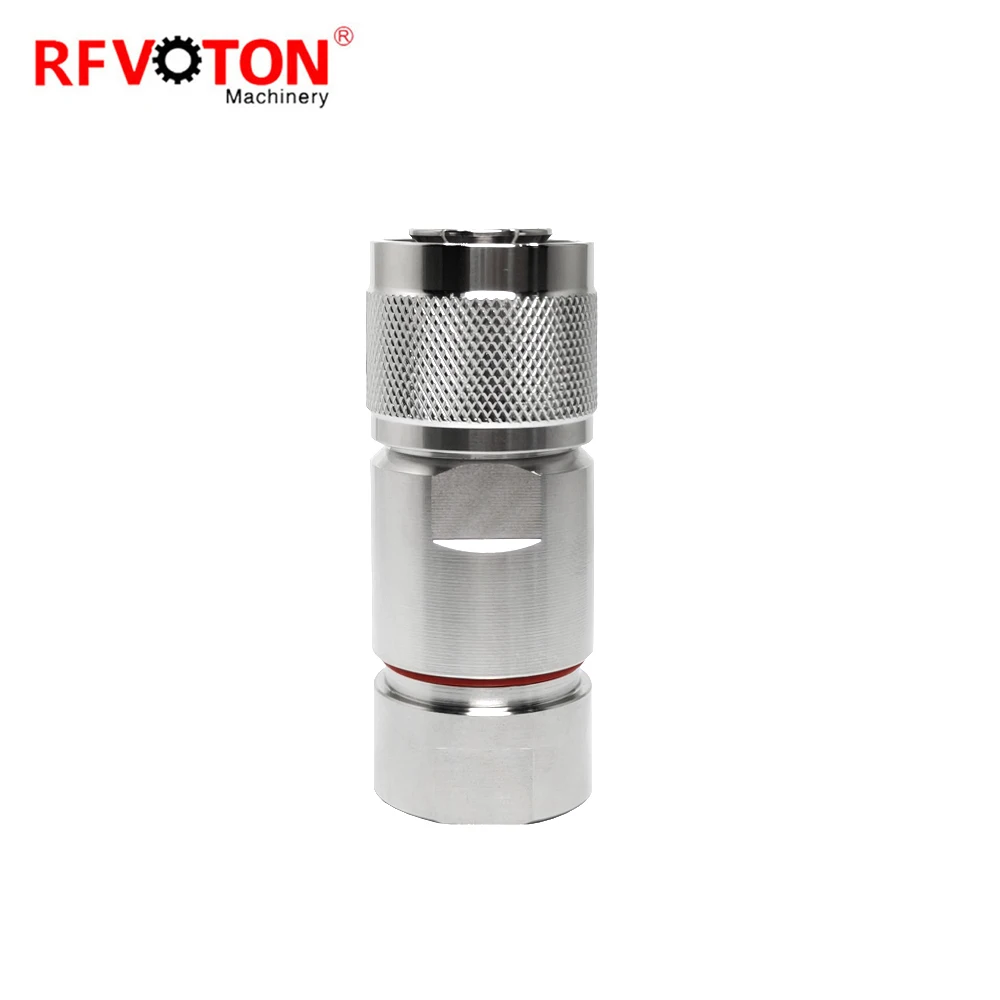

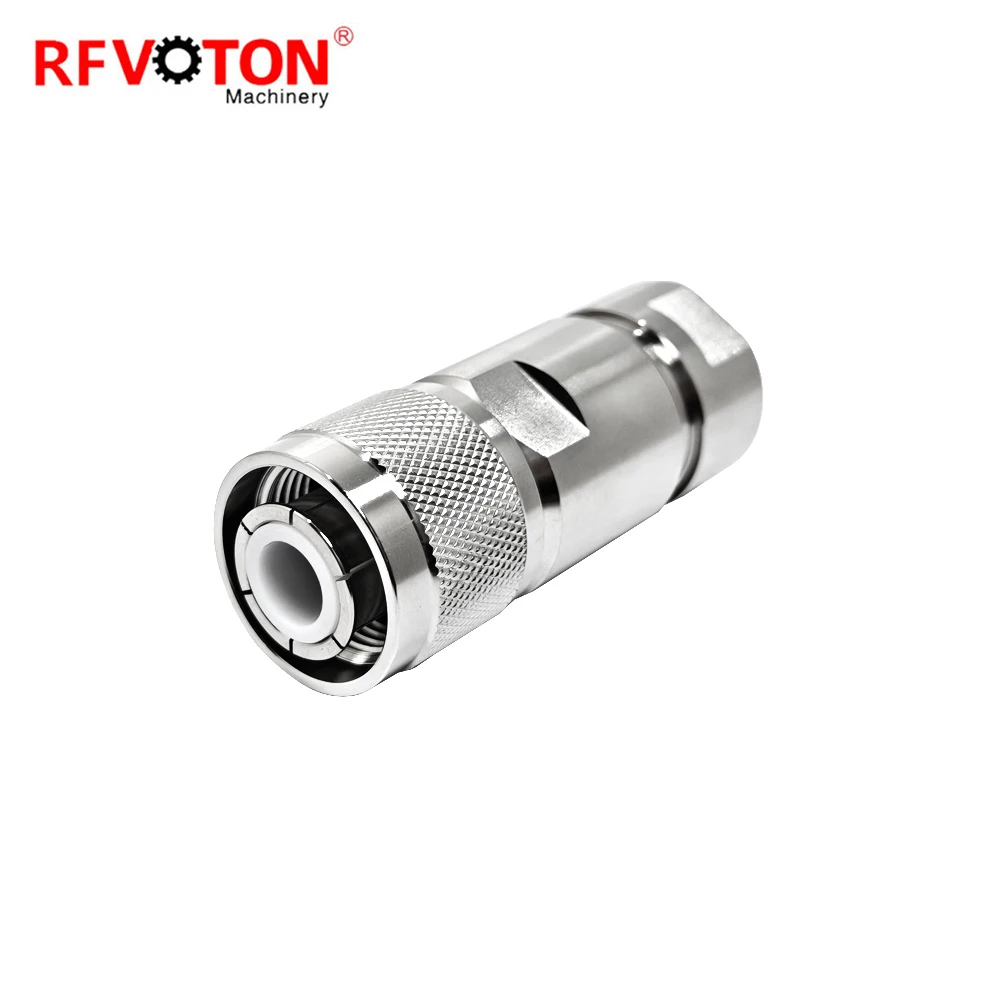

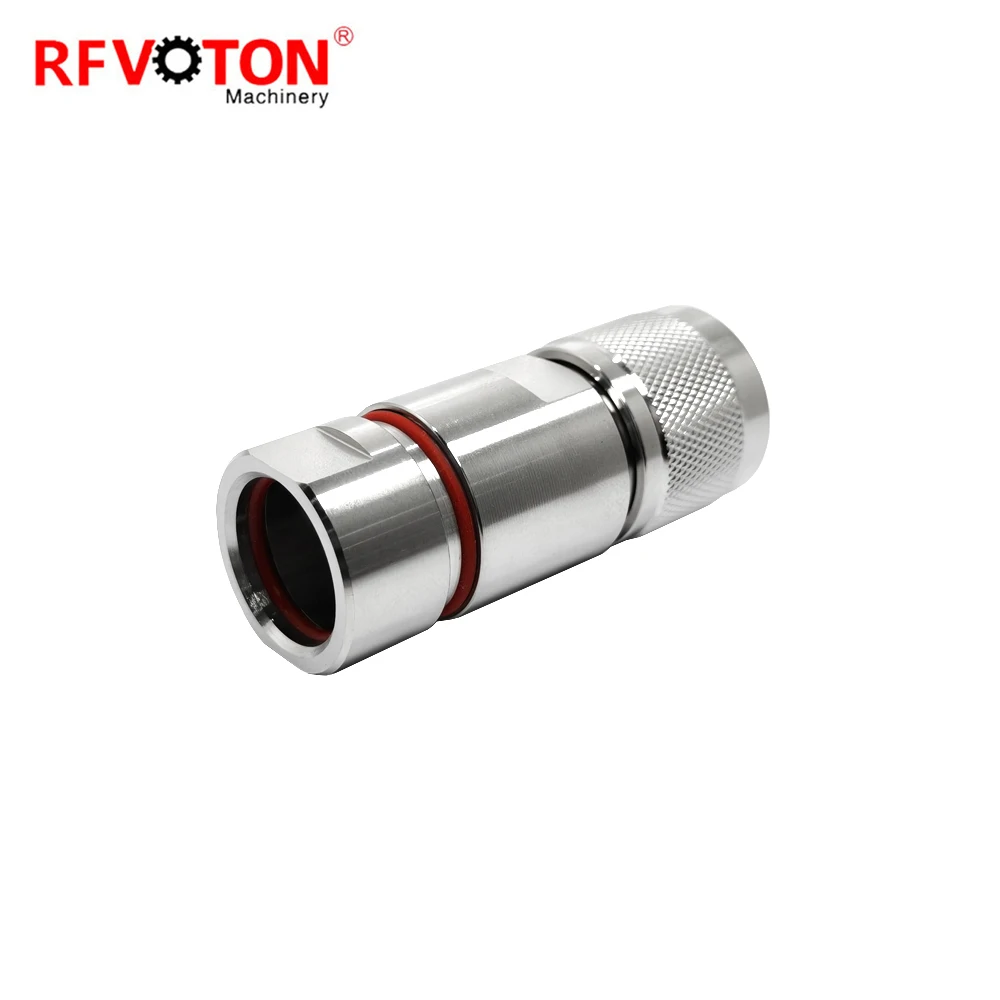

HN Male Plug Macho Clamp Straight Mounting Screw Macho for 1/2 Cable 1-2 Rf Coaxial Connector
HN Male Plug Macho Clamp Straight Mounting Screw Macho for 1/2 Cable 1-2 Rf Coaxial Connector
Overview
Inquiry
Related Products
Product Description
HN Male Plug Macho Clamp Straight Mounting Screw Macho for 1/2 Cable 1-2 Rf Coaxial Connector
RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/u.fl/L9/SMA/SMB/MMCX/MCX/OEM)
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA,
SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as
BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA,
SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as
BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
temperature range |
-40~+60°C |
Vibration |
100m/s2 (10~500Hz) |
Impedance |
50Ω |
Frequency Range |
DC~1GHz |
Working Voltage |
170V max |
Break-down Voltage |
4000V rms @ sea level |
Contact resistance |
Center Conductor ≤2mΩ |
Average power |
3KW max |
Insulation resistance |
≥ 1000 MΩ |
VSWR |
Straight ≤ 1.20 Right angle ≤ 1.30 |
Durability (mating) |
≥500 (cycles) |
Material & Plating
HN Male Plug Macho Clamp Straight Mounting Screw Macho for 1/2 Cable 1-2 Rf Coaxial Connector
Body |
Brass |
Nickel plated / Alloy plated |
Inner Pin |
Brass |
Gold plated |
Resilient Contact |
Beryllium Copper |
Gold plated |
Socket Contact |
Beryllium or tin bronze |
Gold plated |
Insulator |
PTFE |
|
Crimp Ferrule |
Copper alloy |
Nickel / Gold plated |
O-ring sealing |
silastic |
Applicable Standard
IEC 60169-24
