1) factory sell directly
2) long-term,strong and steady supplying ability
3) delivery time: 1-2 working days
4) do as your requirements on package,brand or other designs
5) strong sales promotion policy
6) ex-factory price and competitive price
7) we can provide you a good survice
8) replying you asap.(will reply you 10-20 mins on the basis of getting your require.
Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.

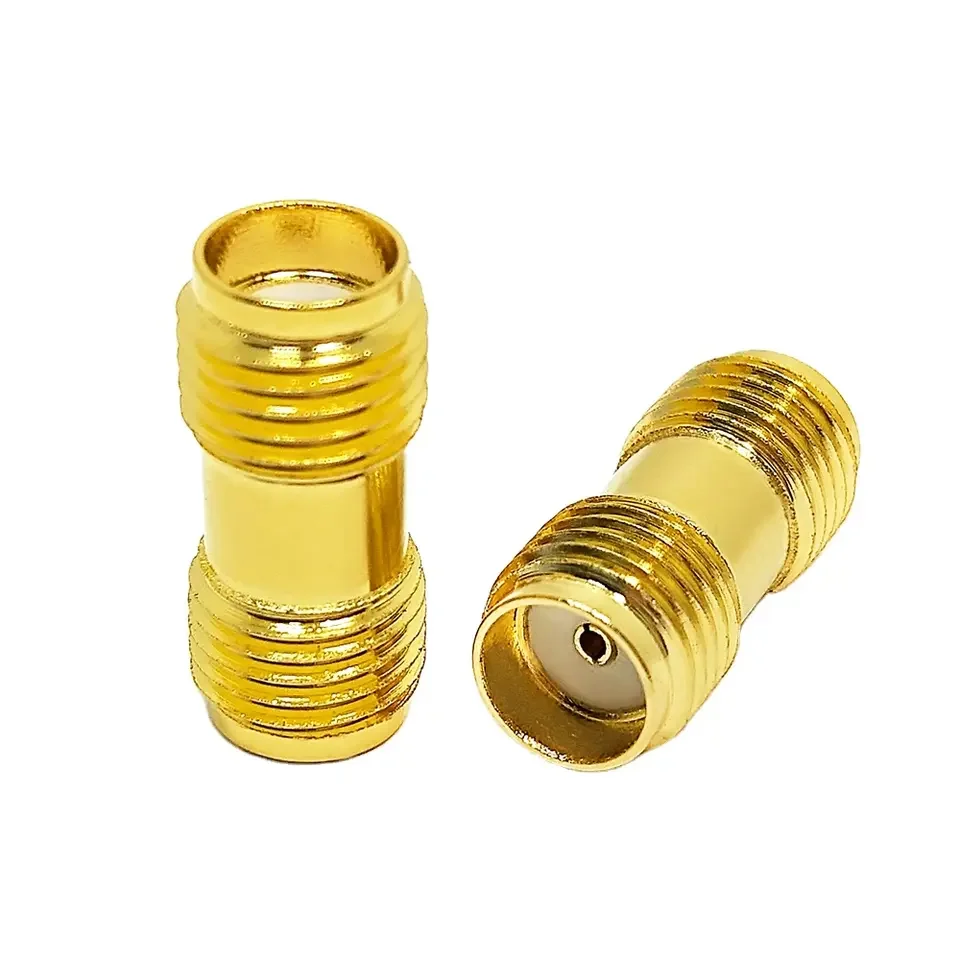

Factory 50 Ohm High Quality SMA Female to SMA Female Adapter Connector RF Coax Coaxial Adapter Antenna Connectors in Stock
Overview
Inquiry
Related Products
Product Description
Factory 50 Ohm High Quality SMA Female to SMA Female Adapter Connector RF Coax Coaxial Adapter Antenna Connectors in Stock
Material & Plating&Parameter
Factory 50 Ohm High Quality SMA Female to SMA Female Adapter Connector RF Coax Coaxial Adapter Antenna Connectors in Stock
Body |
Brass |
Nickel plated / Alloy plated |
Inner Pin |
Brass |
Gold plated |
Resilient Contact |
Beryllium Copper |
Gold plated |
Socket Contact |
Beryllium or tin bronze |
Gold plated |
Insulator |
PTFE |
|
Crimp Ferrule |
Copper alloy |
Nickel / Gold plated |
O-ring sealing |
Silicone Rubber |
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
Impedance |
50Ω |
Vibration |
100m/S2 (10~500Hz), 10g |
Frequency Range |
DC-4GHz |
Insertion Loss |
≤ 0.24dB/6GHz |
Withstanding Voltage |
2000V r.m.s at sea level |
Working Voltage |
750Vr.m.s at sea level |
Insulation Resistance |
≥ 5000 MΩ |
Center conductor retention force |
450N |
Durability |
≥ 500(cycles) |
Contact resistance |
CenterContact ≤1mΩOuter Contact ≤1mΩ |
Voltage Standing Wave Ratio |
Straight ≤ 1.15/4GHz Right angle ≤ 1.25/4GHz
|
Applicable Standard
MIL-C-39012;
CECC 22210;
IEC 60169-16
CECC 22210;
IEC 60169-16
You may also like

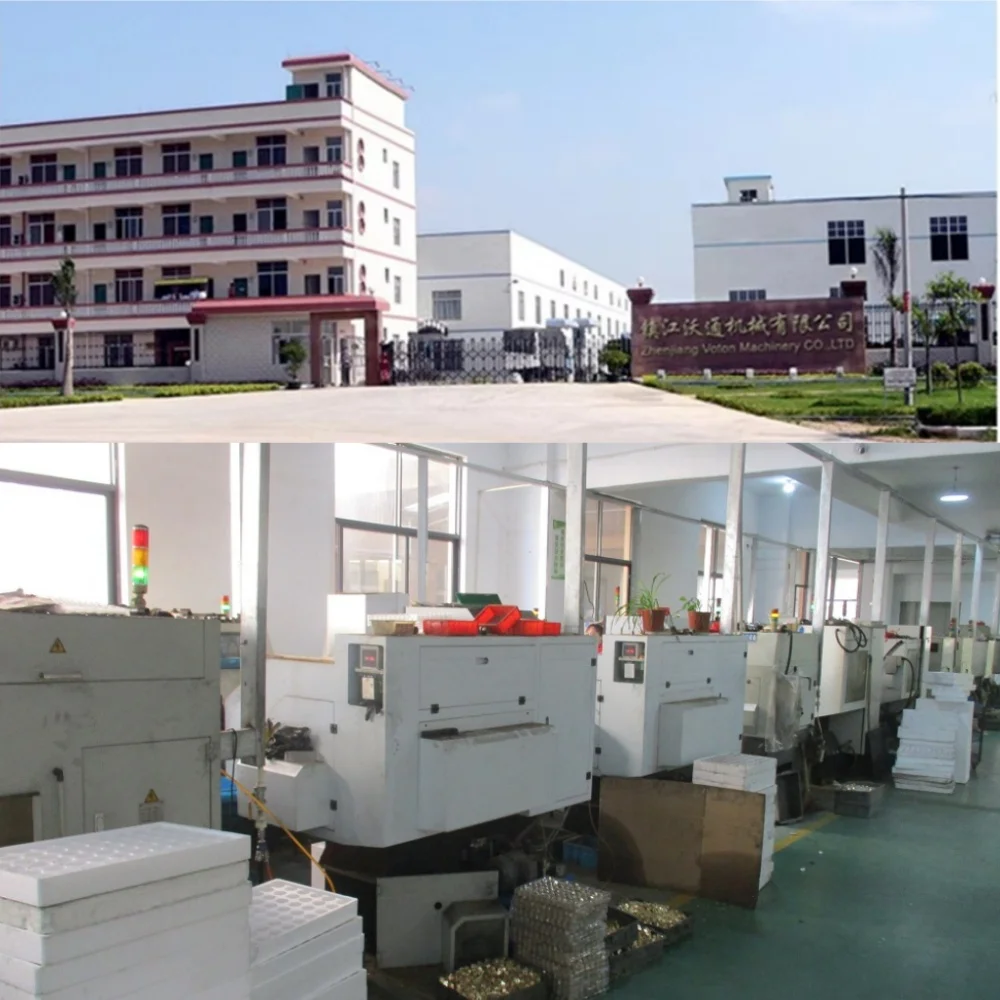

Company Introduction
Zhenjiang Voton Machinery Co., Ltd.
Zhenjiang Voton Machinery Co., Ltd. is located in Zhenjiang City and is specialized in manufacturing, designing and researching RF connectors, coaxial cable,antenna,cable assembly.We also agent as Glow starters and microwave products.With 27 experienced and professional team, we have exported our products to many countries and regions all over the world, especially America and Europe. We also provide OEM services.We have been produced pins for connector as OEM'S manufacturer . Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.We have quite strict quality control before shipment,this is why RFVOTON hot sale in the world.Rohs N Male Connector
Our Service
What we could do for you are :
Certifications
Quality Control
Packing&Shipping

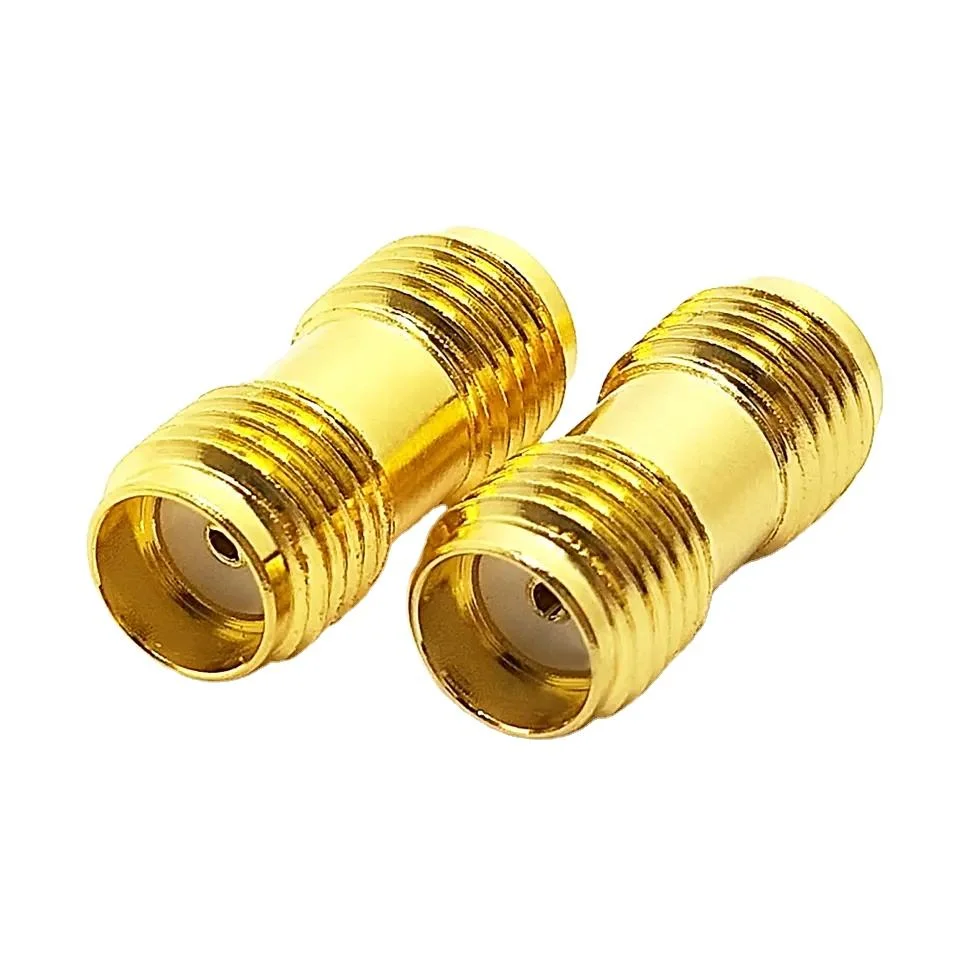

Factory 50 Ohm High Quality SMA Female to SMA Female Adapter Connector RF Coax Coaxial Adapter Antenna Connectors in Stock
FAQ
1.Q: Are you the manufacture or the trading company?
A : We are the manufacture focused on manufacturing rf connector,coaxial cables,antenna,lightning arrester since 1991!
2. Q: How long will the delivery take?
A : About 7-10 days.(We have a large stock.)
3. Q : How do your company deal with the problem on quality？
A : We have 7-year experience in the field of rf connectors . High quality and perfect service earn us great reputation . We will have a detailed analysis of the problem. If our product is unqualified , we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
4. Q: Can you send sample for us to test?
A: Of Course! You can check the quality of our products by ordering samples.
5. Q: What kind of payment term you accept?
A: Paypal, western union, alipay, T/T, Bank transfer, Credit Card, GOOGLE_PAY, APPLE_PAY, etc.
6. Q: Is customized service availble?
A: Yes, we can do ODM / OEM. If you need customized service please contact me.
7. Q: The price of your product is too high, can you give me discount?
A : Did you know our product ? If you don not know much about it , you cant judge whether our products are expensive or not. Actually, the price is reasonable , which product is cheaper than our product？ In the shared market , our products in same grade are not cheaper than us . The quality of our product is match with the price.
8. Q : Can you guarantee the quality of product ?
A : Sure , high quality give us confidence to do business with your company . Long-termcooperation is what we need most instead of short-term cooperation.
